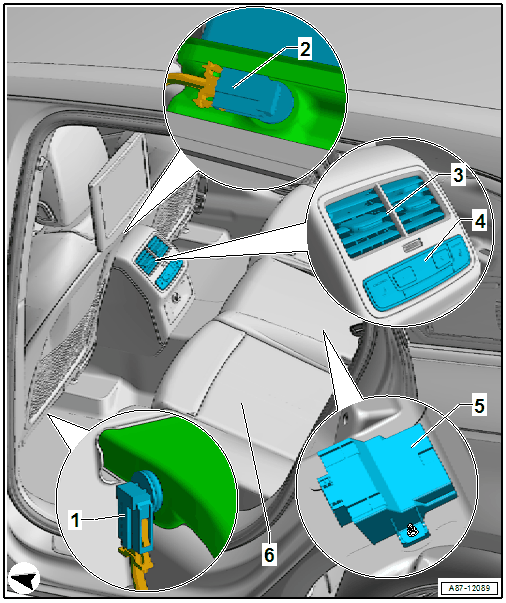

Component Location Overview - Components Inside Rear Passenger Compartment

NOTE:

The illustration shows and A4, on the Q5 the component locations are slightly different.

Courtesy of AUDI OF AMERICA, LLC

Left Rear Footwell Vent Temperature Sensor -G637-
- Equipped on some models, only installed on a vehicle with a "High" A/C system
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function
- Removing and Installing. Refer to Left Rear Footwell Vent Temperature Sensor -G637-, REMOVING AND INSTALLING .
Rear Upper Body Vent Temperature Sensor -G537-
- Equipped on some models, only installed on a vehicle with a "High" A/C system
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function
- Removing and Installing. Refer to REAR UPPER BODY VENT TEMPERATURE SENSOR -G537-, REMOVING AND INSTALLING .
Vent in Rear Center Console
- Equipped on some models, only installed on a vehicle with a "High" A/C system
- Removing and installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Rear A/C Display Control Head -E265-
- Equipped on some models, only installed on a vehicle with a "High" A/C system
- There are different versions.
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
- Removing and Installing. Refer to DISPLAY CONTROL HEAD, REMOVING AND INSTALLING .
- Information. Refer to Rear A/C Display Control Head -E265-, REMOVING AND INSTALLING, "High" A/C SYSTEM, A4 AND A5 .
  NOTE:
  There is currently no child safety system planned for the Rear A/C Display Control Head -E265- (introduction not yet finalized). If the child safety system for the Rear A/C Display Control Head -E265- is offered in the future and is active in the vehicle, the setting of the rear A/C system and the seat heating cannot be changed by the Rear A/C Display Control Head -E265- (when a button or knob is operated, three lines appear in both displays). The settings can then only be modified via the Front A/C Display Control Head -E87- and the MMI Terminal. Refer to the Operating Instructions.

  On a vehicle with a "High" A/C system the Rear A/C Display Control Head -E265- exchanges information via a LIN bus with the Front A/C Display Control Head -E87-. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function and refer to the appropriate Wiring Diagram(s).

  When replacing the Rear A/C Display Control Head -E265-, ensure correct allocation with respect to the Front A/C Display Control Head -E87-. If the allocation is incorrect, various functions of the rear A/C system, for example, may not be able to be displayed and selected.

  Certain A/C system functions can be switched on and off via the MMI (Multi Media Interface) in the "A/C system" function under the "Car" / "Vehicle" menu. The A/C system control can also be influenced via the presets in the MMI (Multi Media Interface) under the "A/C system" function in the "Car" / "Vehicle" menu. Therefore, check the preset in the MMI first in the case there is a concern with these components. Refer to Infotainment/MMI Owner's Manual.
Data Bus on Board Diagnostic Interface -J533-
- Via the Data Bus on Board Diagnostic Interface -J533-, information is exchanged between the Front A/C Display Control Head - E87- and other control modules (for example with the Comfort System Central Control Module -J393-, the Vehicle Electrical System Control Module -J519- etc.). Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function and refer to the appropriate Wiring Diagram(s).
- Removing and installing. Refer to DATA BUS ON BOARD DIAGNOSTIC INTERFACE -J533-, REMOVING AND INSTALLING .
Rear Bench Seat
- Equipment version with seat heating
- There are different versions.
- Information about seat heating function. Refer to SEAT HEATING .
- Servicing the seat heating. Refer to PNEUMATIC LINES, SERVICING / SEAT HEATING / OVERVIEW - SEAT HEATING ELEMENT .
  NOTE:
  Currently for seat heating as an optional equipment for the rear bench seat is only planned for vehicles with a "High" A/C system. If later (introduction not yet finalized) for a vehicles with a "Low" A/C system a seat heating also is installed, an extra button is installed, which does not apply to the A/C system option. Refer to the appropriate Wiring Diagram(s) and REAR SEATS .
