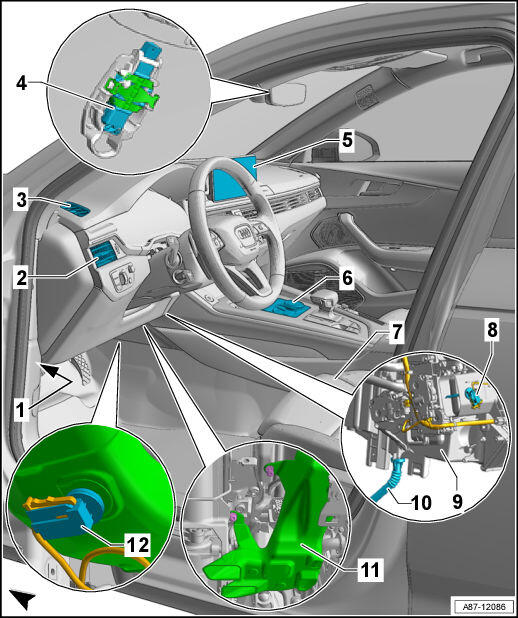

Component Location Overview - Components Inside Front Passenger Compartment, Left Side Of Passenger Compartment

Courtesy of AUDI OF AMERICA, LLC

Vehicle Electrical System Control Module -J519-
- Different components (for example, the A/C Compressor Regulator Valve -N280-, etc.) are activated by the A/C system via the Vehicle Electrical System Control Module -J519-. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function (for the A/C system and the Vehicle Electrical System Control Module -J519-).
- Removing And Installing And Checking. Refer to VEHICLE ELECTRICAL SYSTEM CONTROL MODULE -J519-, REMOVING AND INSTALLING .
Left Instrument Panel Vent
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT, FRONT .
- Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Left Side Window Defroster Vent
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT, FRONT .
Humidity Sensor -G355- / Sunlight Photo Sensor -G107-
- There are different versions.
- To check. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function. Refer to the appropriate Wiring Diagram(s).
- The Humidity Sensor -G355- and Sunlight Photo Sensor -G107- are (depending on vehicle equipment) integrated in the Rain/Light Recognition Sensor -G397-. If faulty, these cannot be replaced separately. Replacing. Refer to RAIN/LIGHT RECOGNITION SENSOR, REMOVING AND INSTALLING .
- Depending on the model, the Sunlight Photo Sensor -G107- may also be installed in the defroster vent.
Front Information Display Control Head -J685-
- Multi Media Interface (MMI) Display
- There are different versions and controls, depending on MMI version and vehicle equipment. Refer to Infotainment/MMI Operating Instructions.
- Functions (and various additional heating and A/C system functions) selected on the Front A/C Display Control Head -E87- are shown via the MMI display. Refer to Infotainment/MMI Operating Instructions.
Front Information Display Control Head Control Module -J523- MMI
- Via the Front Information Display Control Head Control Module -J523- MMI the various functions for the activation of the heating and A/C system are entered and shown on the corresponding display. Refer to the Infotainment/MMI Operating Instructions.
  NOTE:
  The different functions of the heating and A/C system are set in the MMI check if these settings in the MMI are the reason for a concern regarding the regulation of the heating and A/C system or in the heating output. Refer to the Owner's Manual and Owner's Manual "Infotainment/MMI".
- The operation of the parking/auxiliary heater (in the "Car" / "Vehicle" menu) from the Front Information Display Control Head Control Module -J523- MMI and the corresponding display in the display are described in the corresponding Owner's Manual. Refer to Infotainment/MMI Owner's Manual.
  NOTE:
  The additional function of the parking/auxiliary heater and the heating and A/C system depend on the displayed coding of the Front A/C Display Control Head -E87-. If the allocation and coding are incorrect, different functions of the parking/auxiliary heater and the heating and A/C system in the Front Information Display Control Head Control Module -J523- MMI cannot be displayed and selected. Use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function and refer to the Owner's Manual and the Owner's Manual "Infotainment/MMI".

  Depending on the version of the shared control modules and the coding of the Front A/C Display Control Head -E87- the additional functions of the parking/auxiliary heater and the heating and A/C system are selected and activated via the Front A/C Display Control Head -E87- knob of the control head of the Front Information Display Control Head Control Module -J523- MMI. Refer to the Owner's Manual and Owner's Manual "Infotainment/MMI".

  Pay attention to the correct allocation and coding of the Front A/C Display Control Head -E87- for example to the Front Information Display Control Head Control Module -J523- or to the Information Electronics Control Module 1 -J794-. If the allocation is incorrect the different functions of the parking/auxiliary heater and the heating and A/C system in the Front Information Display Control Head Control Module -J523- MMI are not displayed and selected.
Left Front Seat
- Depending on the vehicle equipment level with seat heating, seat ventilation and massage function
- There are different versions.
- Information about seat heating function. Refer to FRONT SEAT HEATING .
- Information about seat ventilation. Refer to SEAT VENTILATION .
- Information about the massage function. Refer to SEAT VENTILATION .
- Seat heating, servicing. Refer to SEAT HEATING / OVERVIEW - SEAT HEATING ELEMENT .
- Seat ventilation, servicing. Refer to COMPONENT LOCATION OVERVIEW - ELECTRIC AND ELECTRONIC COMPONENTS .
- Servicing the massage function (if equipped). Refer to FRONT SEATS .
Left Footwell Vent Temperature Sensor -G261-
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function
- Removing and Installing. Refer to LEFT FOOTWELL VENT TEMPERATURE SENSOR -G261-, REMOVING AND INSTALLING .
Heater and A/C Unit, Left Side
- Overview. Refer to OVERVIEW - FRONT HEATER AND A/C UNIT .
- Removing and Installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
Left Condensation Water Drain (Driver Side)
- Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING
Left Footwell Vent
- Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT, FRONT .
Left Front Upper Body Vent Temperature Sensor -G385-
- Equipped on some models, only installed on a vehicle with a "High" A/C system
- On a vehicle with a "Low" A/C system (or no A/C system) the Left Front Upper Body Vent Temperature Sensor -G385- is not installed The opening in the air duct is closed with a plug.
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function. Refer to the appropriate Wiring Diagram(s).
- Removing and Installing. Refer to LEFT FRONT UPPER BODY VENT TEMPERATURE SENSOR -G385-, REMOVING AND INSTALLING, "HIGH" A/C SYSTEM .
  NOTE:
  On a vehicle with a "Low" A/C system (or without an A/C system) the Left Front Upper Body Vent Temperature Sensor -G385- is installed in the air duct to the center instrument panel vent. Refer to COMPONENT LOCATION OVERVIEW - COMPONENTS INSIDE FRONT PASSENGER COMPARTMENT, RIGHT SIDE OF PASSENGER COMPARTMENT .
