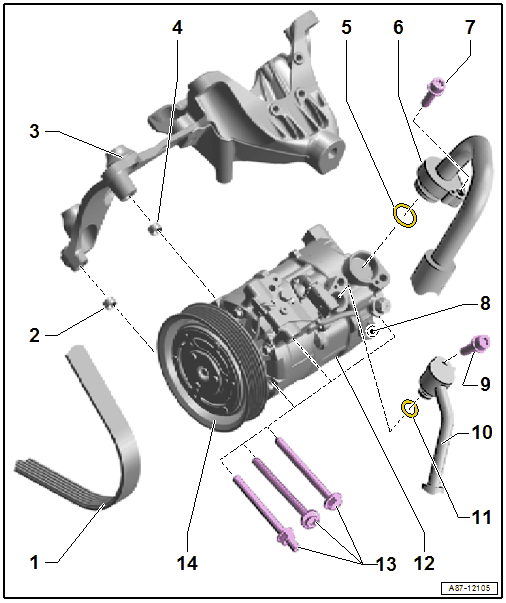

Overview - A/C Compressor Power Unit, Vehicles With 6-Cylinder 3.0L TFSI Engine

• Check for wear
• Mark the running direction and install on the correct side
• Ribbed belt (for power take-off) removing and installing. Refer to RIBBED BELT, REMOVING AND INSTALLING .
• Ribbed belt for the A/C compressor, removing and installing (for example on a 6-cylinder TFSI engine with turbocharger). Refer to A/C COMPRESSOR RIBBED BELT, REMOVING AND INSTALLING .
  NOTE:

  With or without the A/C Clutch -N25- depending on the engine and the A/C compressor belt pulley.

  On vehicles with a 6-cylinder TFSI engine with turbocharger the A/C compressor is driven with a ribbed belt.

• There are different versions.
• Removing and Installing. Refer to SUB-ASSEMBLY BRACKET, REMOVING AND INSTALLING .
  NOTE:

  This illustration shows a sub-assembly bracket on a 6-cylinder TFSI engine without turbocharger.

• Always replace. Refer to the Parts Information for the version.
• Coat with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS .

• M6 - 9 Nm
• M8 - 25 Nm

• To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding"  function. Refer to the appropriate Wiring Diagram(s).
  NOTE:

  Additional information. Refer to COMPONENT LOCATION OVERVIEW - COMPONENTS OUTSIDE OF VEHICLE INTERIOR .

• M6 - 9 Nm
• M8 - 25 Nm

• Always replace. Refer to the Parts Information for the version.
• Coat with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS .

• There are different versions.
• Refrigerant Line, Disconnecting and Connecting. Refer to REFRIGERANT LINES, DISCONNECTING AND CONNECTING TO A/C COMPRESSOR .
• Removing and installing from the bracket. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
• Removing and Installing. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING .
  NOTE:

  There are different versions depending on the refrigerant (R134a or R1234yf).

Steel bolt with threads on head

• 25 Nm

  Steel Bolt

• 25 Nm

  Aluminum bolt

• Always replace after removing.
• 8 Nm + 180°
• There are different versions.
• Quantity: 3

• There are different versions.
• Overview. Refer to OVERVIEW - BELT PULLEY .
  NOTE:

  With or without the A/C Clutch -N25- depending on the engine and the A/C compressor.
