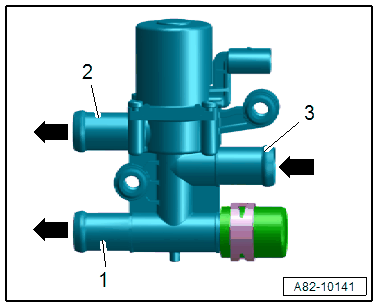

Heater Coolant Shut-Off Valve -N279- Function
The Heater Coolant Shut-Off Valve -N279- is currently only on vehicles with a parking/auxiliary heater installed as optional equipment. Refer to CONNECTION DIAGRAM - COOLANT HOSES .
Incorporation of the heating and A/C system and the parking and auxiliary heater in the coolant circuit. Refer to AUXILIARY HEATER HEATING ELEMENT -Z35-, REMOVING AND INSTALLING or refer to the appropriate service information .
The Heater Coolant Shut-Off Valve -N279- is activated from the Auxiliary Heater Control Module -J364- according to the coolant temperature and the adjusted request. Refer to AUXILIARY HEATER HEATING ELEMENT -Z35-, REMOVING AND INSTALLING or refer to the appropriate service information and use the Vehicle Diagnostic Tester in the"Guided Fault Finding" function.
If there is a concern regarding poor heating of the vehicle interior when operating the parking/auxiliary heater and a concern regarding poor heating of the vehicle interior with the engine running check the incorporation of the Heater Coolant Shut-Off Valve -N279- in the coolant circuit and the activation of the Heater Coolant Shut-Off Valve -N279- from the Auxiliary Heater Control Module -J364-. Refer to AUXILIARY HEATER HEATING ELEMENT -Z35-, REMOVING AND INSTALLING or refer to the appropriate service information and use the Vehicle Diagnostic Tester in the"Guided Fault Finding" function.
Additional information for the activation and the function of the Heater Coolant Shut-Off Valve -N279-. Refer to AUXILIARY HEATER HEATING ELEMENT -Z35-, REMOVING AND INSTALLING or refer to the appropriate service information .
