"High" Heating And A/C System Version

NOTE:

For these vehicles (For example the Audi A4) there are different versions of the heating and A/C system depending on the equipment. Make sure to use the correct version and pay attention to the allocation of different components.

Identifying features of a "High" A/C system version

Fig 1: Front A/C Display Control Head -E87-

Courtesy of AUDI OF AMERICA, LLC

Front A/C Display Control Head -E87- version -B-
With a Rear A/C Display Control Head -E265- -A-

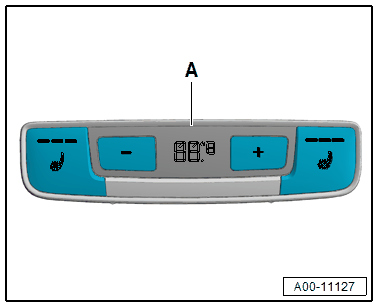

Fig 2: Rear A/C Display Control Head -E265-
Courtesy of AUDI OF AMERICA, LLC

Heater and A/C unit in the "High" version. Refer to OVERVIEW - FRONT HEATER AND A/C UNIT .
