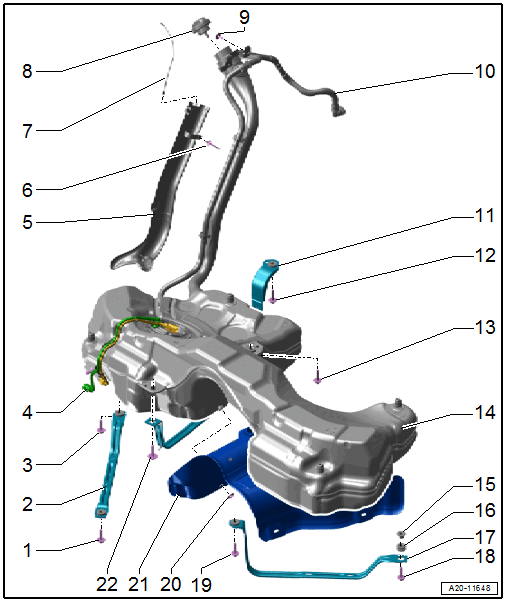

Overview - Fuel Tank, TFSI Vehicles With Fwd/AWD: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Audi S4, 2019 Audi S4, 2019 Audi A4 allroad, 2019 Audi A4, and 2018 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 20 Nm
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Fuel Line
- To the engine
- Do not kink
- Clipped to the fuel tank
- Connector couplings, disconnecting and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Protective Plate
- For the fuel filler neck
- Rivet
- Quantity: 2
- Ground Connection
- For protective plate

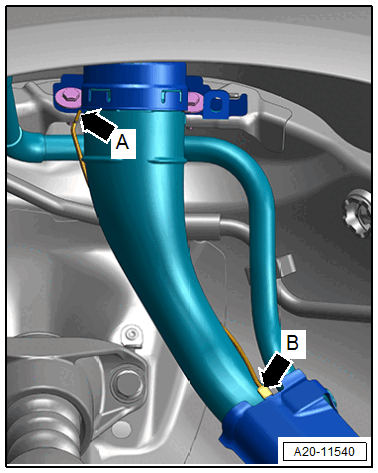

- For discharging electrostatic charge. Refer to Figure.
- Cap
- Attached to the fuel filler door unit with fastener
- Turn until it clicks into place.
- Bolt
- 8 Nm
- Secures the fuel filler neck and works as the ground connection
- Quantity: 2
- Bleeder Line
- To the EVAP Canister
- Do not kink
- Connector couplings, disconnecting and connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Fuel Tank
- There are different versions. Refer to the Parts Information for the allocation.
- Removing and Installing. Refer to FUEL TANK, REMOVING, TFSI VEHICLES .
- Bushing
- Rubber Bushing
- Mounting Strap
- Secured to the fuel tank with expanding clips.
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Spring Nut
- 2 Nm
- For the heat shield
- Quantity: 5
- Heat Shield
- For the fuel tank
- Bolt
- 20 Nm
