Draining A Fuel Tank More Than 3/4 Full, TDI Vehicles: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Audi S4, 2019 Audi S4, 2019 Audi A4 allroad, 2019 Audi A4, and 2018 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

-- Follow all safety precautions. Refer to SAFETY PRECAUTIONS .

-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

-- Open the fuel filler door.

-- Clean the area around the fuel filler neck.

-- Remove the fuel filler cap -arrow-.

Fig 1: Fuel Filler Cap

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The adapter -1- and cone piece -2- from the :VAS5190A will not be used.

Fig 2: Fuel Extracting Unit VAS5190 Dimension -a-

Courtesy of AUDI OF AMERICA, LLC

Push the adapter -1- on the hose slightly reward.

-- Attach the insulating tape -arrow- to the hose at a distance -a- from the end of the suction hose.

All Except A5 Cabriolet dimension -a- = 990 mm.
A4 Cabriolet dimension -a- = 970 mm.

-- Insert the :T40256 -3- all the way into the fuel filler neck.

Fig 3: :T40256

Courtesy of AUDI OF AMERICA, LLC

-- Slide the suction hose of the :VAS5190A far enough into the fuel tank until the marking applied earlier -arrow- is on the edge of the fuel filler tube.

NOTE:

A flap -1- is located in the fuel tank on the lower end of the fuel filler neck -2-. It must not be damaged by the suction hose from the :VAS5190A . Only slide the hose in as far as the mark that was made earlier -arrow-.

-- Slide the suction hose of the :VAS5190A far enough into the fuel tank until the marking applied earlier -arrow- is on the edge of the fuel filler tube with the funnel -3-.

-- Empty the fuel tank through the fuel filler tube.

-- Carefully remove the suction hose.

NOTE:

When no more fuel can be extracted, the tank is emptied only enough for the sealing flange to be opened without danger.

-- Open the sealing flange. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING, TDI VEHICLES .

Fig 4: Identifying Fuel Extraction Unit

Courtesy of AUDI OF AMERICA, LLC

-- Pull the sealing flange out of the opening in the fuel tank just a little.

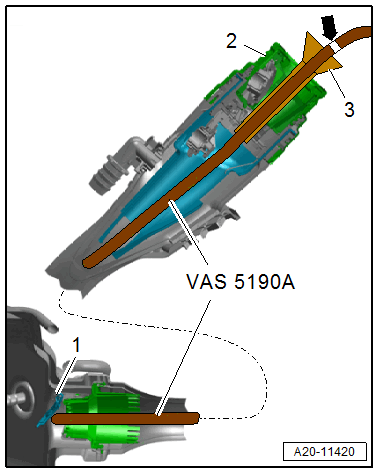

-- Slide the suction hose from the :VAS5190A into the fuel tank.

-- Siphon fuel with the :VAS5190A through the opening.

-- AWD Vehicles: Extract the fuel from both the fuel tank chambers through the opening using the :VAS5190A .
