Overview - Rear Wheel Housing Liner

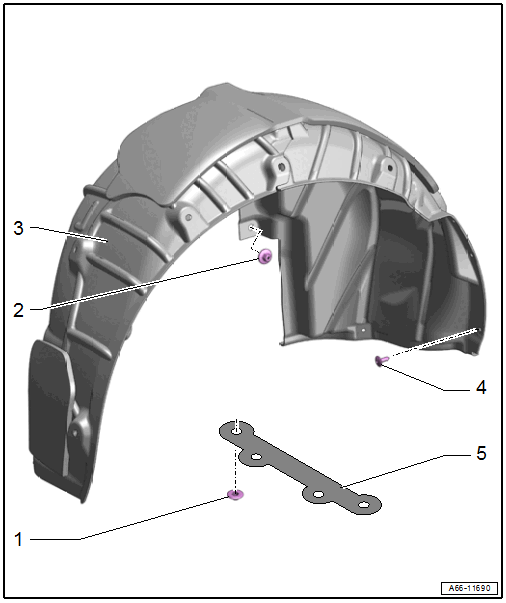

Fig 1: Rear Wheel Housing Liner

Courtesy of AUDI OF AMERICA, LLC

Nut
- 2 Nm
- Quantity: 4
Nut
- 2 Nm
- Quantity: 9
Rear Wheel Housing Liner
- Removing and Installing. Refer to REAR WHEEL HOUSING LINER, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 4
Spoiler
- For the spare tire well
- Removing and Installing. Refer to SPARE TIRE WELL SPOILER, REMOVING AND INSTALLING .
