Special Tools

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2020 Audi A4 allroad, 2020 Audi A4 Quattro, 2020 Audi A4, 2019 Audi A5 Quattro, and 2019 Audi A4 allroad. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Used Oil Collection and Extraction Unit:SMN372500

Fig 1: Identifying Used Oil Collection And Extraction Unit
Courtesy of AUDI OF AMERICA, LLC
Tensioning Strap:T10038

Fig 2: Identifying Tensioning Strap T10038
Courtesy of AUDI OF AMERICA, LLC
Puller - Two Arm Thrust Piece :T10040/3

Courtesy of AUDI OF AMERICA, LLC
Seal Installer - Selector Shaft:T10135

Fig 3: Identifying Thrust Piece T10135
Courtesy of AUDI OF AMERICA, LLC
Engine/Gearbox Jack - Gearbox Support:T10337

Fig 4: Engine/Gearbox Jack - Gearbox Support T10337
Courtesy of AUDI OF AMERICA, LLC
Torx Socket - T60:T40087

Fig 5: Hex Ball Socket TORX TB 60 T40087
Courtesy of AUDI OF AMERICA, LLC
Clutch Module Assembly Aid:T40169

Fig 6: Assembly Aid T40169
Courtesy of AUDI OF AMERICA, LLC
Clutch Module Transportation Lock:T40170

Fig 7: Clutch Module Transportation Lock T40170
Courtesy of AUDI OF AMERICA, LLC
Gearbox Support:T40173

Fig 8: Gearbox Support T140173
Courtesy of AUDI OF AMERICA, LLC
Wrench - 21mm:T40263

Fig 9: Identifying Wrench 21 mm T40263
Courtesy of AUDI OF AMERICA, LLC
Adapter:T40314

Fig 10: Adapter T40314
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1332 Insert - Ring Wrench - 16mm:VAG1332/14

Fig 11: Identifying Ring Spanner Insert AF 16 VAG 1332/14
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 1410:VAG1410

Fig 12: Identifying Torque Wrench 1410 VAG1410
Courtesy of AUDI OF AMERICA, LLC
Engine Bung Set:VAS6122

Fig 13: Engine Bung Set
Courtesy of AUDI OF AMERICA, LLC
Hose Clip Pliers:VAS6362

Fig 14: Hose Clip Pliers
Courtesy of AUDI OF AMERICA, LLC
Pressurized Gearbox Oil Filler Kit:VAS6617

Fig 15: Gearbox Oil Filler Kit VAS6617
Courtesy of AUDI OF AMERICA, LLC
Adapter:VAS6617/12
Engine and Gearbox Jack:VAS6931

Fig 16: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench Adapter:VAS6948

Courtesy of AUDI OF AMERICA, LLC
Hose Clamps - Up To 25 mm:3094

Fig 17: Hose Clamps
Courtesy of AUDI OF AMERICA, LLC

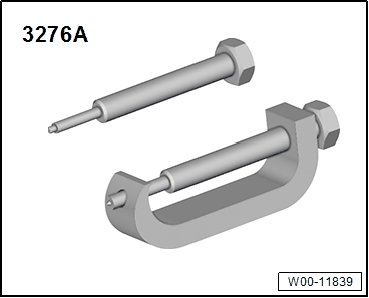

Pressure Device:3276A

Courtesy of AUDI OF AMERICA, LLC
Trim Removal Wedge:3409

Fig 18: Identifying Trim Removal Wedge
Courtesy of AUDI OF AMERICA, LLC
