Exhaust Temperature Regulation Components, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Audi A4/A5/A6/A7:
-- Remove the plenum chamber bulkhead. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .
Audi Q5:
-- Remove the tower braces. Refer to TOWER BRACE, REMOVING AND INSTALLING .
Continuation for All Vehicles:
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

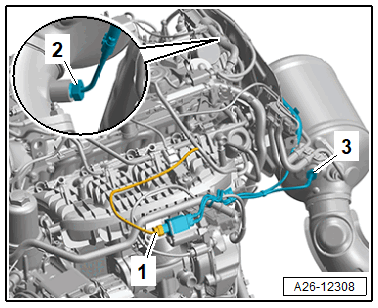

-- Disconnect the connector -1- and free up the wires:
-- Remove the Exhaust Gas Temperature Sensor 3 -G495- -2- and Exhaust Gas Temperature Sensor 4 -G648- -3- :
