Overview - Oil Pan/Oil Pump, Version 2: Notes

WARNING: This page is about a different variant/trim than selected.

If large quantities of metal shavings or abraded material are found in the engine oil while servicing the engine, the oil passages must be carefully cleaned to prevent subsequent damage. Replace the additional oil spray jet, engine oil cooler and oil filter.
Oil spray jet and pressure relief valve. Refer to OVERVIEW - PISTONS AND CONNECTING ROD .

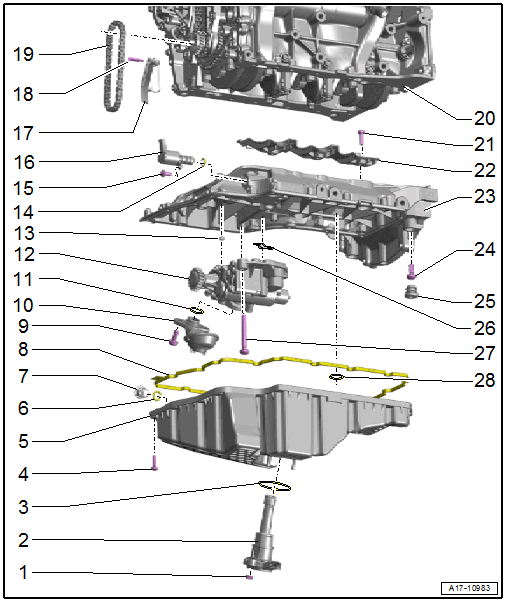

Fig 1: Exploded View Of Oil Pan/Oil Pump (Version 2)

Courtesy of AUDI OF AMERICA, LLC

Nut
- 9 Nm
Oil Level Thermal Sensor -G266-
- Removing and Installing. Refer to Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING .
Seal
- Always replace after removing.
Bolt
- Tightening sequence. Refer to Figure.
- Always replace after removing.
Oil Pan Lower Section
- Removing and Installing. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING, VERSION 2 .
O-Ring
- Always replace after removing.
- Coat with engine oil
Plug
- Tighten all the way
Seal
- Always replace after removing.
Bolt
- 4 Nm + 45°
- Always replace after removing.
Suction Line
- Clean the screen if there are debris
O-Ring
- Always replace after removing.
- Coat with engine oil
Oil Pump
- Removing and Installing. Refer to OIL PUMP, REMOVING AND INSTALLING .
Centering Bracket
- For the oil pump
- Quantity: 2
O-Ring
- Always replace after removing.
- Coat with engine oil
Bolt
- Tightening specification. Refer to ) OVERVIEW - OIL PRESSURE SWITCH/OIL REGULATION, VEHICLES WITH GENERATOR - Bolt.
- Always replace after removing.
Oil Pressure Regulation Valve -N428-
- Checking. Refer to Vehicle Diagnostic Tester.
- Removing and Installing. Refer to Oil Pressure Regulation Valve -N428-, REMOVING AND INSTALLING .
Chain Tensioner
Bolt
- 9 Nm
Oil Pump Drive Chain
- Mark the running direction before removal
Cylinder Block
Bolt
- 4 Nm + 45°
- Always replace after removing.
Oil Baffle
Oil Pan Upper Section
- Removing and Installing. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .
Bolt
- Tightening Specifications and Sequence. Refer to Figure.
- Always replace after removing.
Plug
- Quantity: 3
Oil Screen
Bolt
- 8 Nm + 90°
- Always replace after removing.
O-Ring
- Always replace after removing.
- Coat with engine oil
