Overview - Crankcase Ventilation: Notes

WARNING: This page is about a different variant/trim than selected.

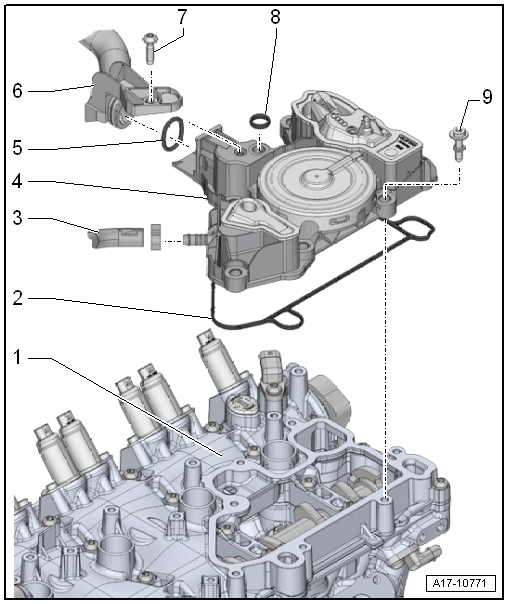

Fig 1: Exploded View Of Crankcase Ventilation
GWWA17-10771Courtesy of AUDI OF AMERICA, LLC
  1. Cylinder Head Cover
  2. Seal
    • Always replace after removing.
  3. Hose
    • To the EVAP Canister Purge Regulator Valve 1 -N80-
  4. Oil Separator
  5. Seal
    • Always replace after removing.
  6. Hose
    • For the crankcase ventilation
    • To the turbocharger
    • There are different versions. Refer to the Parts Information for the allocation.
  7. Bolt
    • 4 Nm
    • Thread cutting
    • Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
  8. Seal
    • Always replace after removing.
  9. Bolt
    • Tightening Specifications and Sequence
    • Thread cutting
    • Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
