Vibration Damper, Removing And Installing, Generator: Removing

WARNING: This page is about a different variant/trim than selected.

Depending on the model, preliminary work may be required. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING .

-- Vehicle without a high-voltage system: remove the ribbed belt (refer to RIBBED BELT, REMOVING AND INSTALLING ). While doing so, do not lock the tensioner.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of Damaging the Engine by the Timing Mechanism Skipping.

- Only let the engine turn in the direction of engine rotation.

-- Turn the crankshaft using the : T40263 , : T40314 and the 24 mm socket in the direction of engine rotation -arrow- until the vibration damper is at "TDC".

The notch -1- on the vibration damper must align with the arrow marking -2- on the lower timing chain cover.
The mark on the lower timing chain cover is located in the >>four-o'clock position<<.
The vibration damper bolt can only be loosened maximum ¹ /₂ turn.

-- Position the : T10355A and loosen the vibration damper bolts approximately ¹ /₂ turn.

Fig 1: Identifying Vibration Damper Counterhold

Courtesy of AUDI OF AMERICA, LLC

-- If the vibration damper is turned, correct it to the TDC point.

-- Remove the bolts -arrows- for the lower timing chain cover.

Fig 2: Locating Timing Chain Cover Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Place the : T10531/1 as shown on the vibration damper and tighten it hand-tight using the knurled bolts -arrows-.

Fig 3: Identifying Assembly Tool Mount

Courtesy of AUDI OF AMERICA, LLC

The arrow marking on the : T10531/1 must point upward.

-- Remove the vibration damper bolt completely.

-- Check if the : T10531/3 -A- can be easily pushed over the clamping piece -B-. If necessary turn the adjusting bolt -arrow-.

Fig 4: Checking Assembly Tool

Courtesy of AUDI OF AMERICA, LLC

Do not turn the tensioning bolt further, otherwise the : T10531/2 becomes jammed when installing in the crankshaft

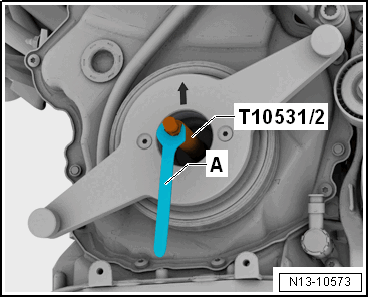

-- Install the : T10531/2 in the crankshaft and tighten it hand-tight using a 12 mm open end wrench -A-.

Fig 5: Identifying Tensioning Pins

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the adjusting bolt -A- hand-tight, to secure the chain sprocket to the crankshaft.

Fig 6: Locating Tensioning Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the knurled bolts -arrows-. Remove the : T10531/1 and vibration damper -A-.

Fig 7: Identifying Assembly Tool Mount

Courtesy of AUDI OF AMERICA, LLC

If the Crankshaft Should Be Turned without the Vibration Damper:

Fig 8: Identifying Collar Nut

Courtesy of AUDI OF AMERICA, LLC

-- Place the : T10531/3 -A- on the : T10531/2 and pay attention to the chain sprocket tooth contour while doing so.

The flat side of the tool is at the top in "TDC".

-- Tighten the turning over tool using the : T10531/4 -B-.

-- The crankshaft can now be turned at the hex fitting -arrow-.

Fig 9: Identifying Hex Fitting

Courtesy of AUDI OF AMERICA, LLC
