Ribbed Belt, Removing And Installing: Installing

Install in reverse order of removal and note the following:

Vehicles with Generator:

Fig 1: Ribbed Belt For Vehicles With Electro-Mechanical Power Steering

Courtesy of AUDI OF AMERICA, LLC

-- Install the ribbed belt. Refer to Figure.

-- Turn the tensioning system slightly in direction of -arrow- and remove the : T10060A  .

Vehicles with Starter Generator:

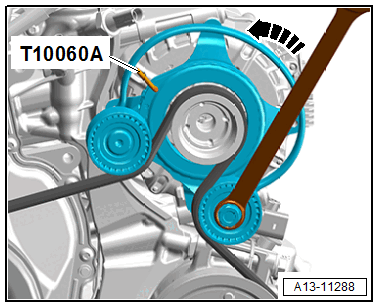

Fig 2: Direction Of Turning The Tensioner

Courtesy of AUDI OF AMERICA, LLC

-- Install the ribbed belt. Refer to Figure.

-- Turn the tensioning system slightly in direction of -arrow- and remove the : T10060A  .

Continuation for All Vehicles:

-- Release the tension on the tensioner.

-- Check whether the ribbed belt is routed correctly.

-- Start the engine and check whether the ribbed belt runs correctly.
