Balance Shaft, Removing And Installing, Exhaust Side: Installing

• After removing the balance shaft the needle bearing must be replaced.
• The needle bearing rim is colored, a needle bearing rim of the same color must be installed.

-- Check the installed position for the balance shaft pipe. The openings -arrow- must face the chain side.

Fig 1: Balance Shaft Pipe

Courtesy of AUDI OF AMERICA, LLC

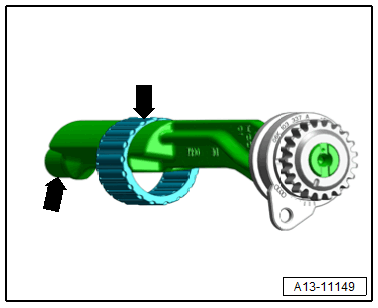

-- Lubricate the balance shaft mountings -arrows- with engine oil.

Courtesy of AUDI OF AMERICA, LLC

-- Install the exhaust side balance shaft.

-- Before tightening the bolt -1- make sure the balance shaft lies level on the crankcase.

Fig 2: Identifying Intake Camshaft Balance Shaft

Courtesy of AUDI OF AMERICA, LLC

• If the balance shaft is not level, then the pipe for the balance shaft must be installed again.

Further installation is performed in reverse order of removal, while noting the following:

-- Install the camshaft timing chain. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .

-- Install the radiator. Refer to RADIATOR, REMOVING AND INSTALLING .
