Turbocharger Recirculating Valve -N249-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
Preliminary work may be required depending on the model. Refer to TURBOCHARGER, REMOVING AND INSTALLING .

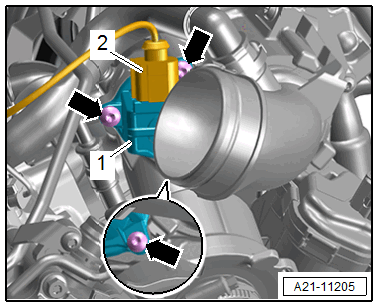

-- Disconnect the connector -2-.
-- Remove the bolts -arrows- and carefully remove the Turbocharger Recirculation Valve -N249-.
