Overview - Turbocharger

Part I

Part II. Refer to the information below Part I.

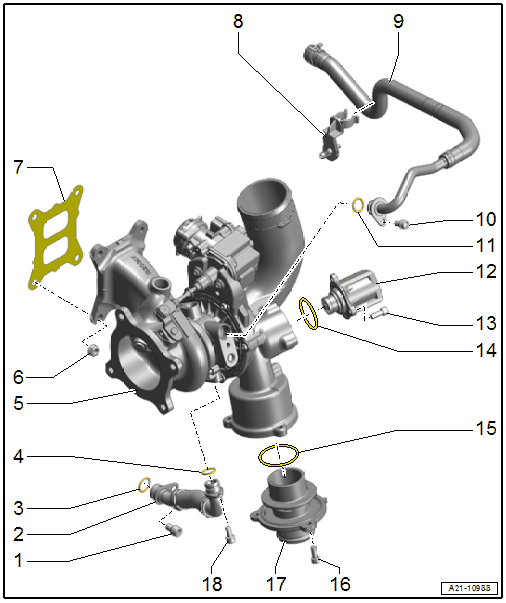

Fig 1: Exploded View Of Turbocharger

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 25 Nm
2. Oil Return Line
3. O-Ring
   • Always replace after removing.
   • Coat with engine oil
4. O-Ring
   • Always replace after removing.
   • Coat with engine oil
5. Turbocharger
   • Removing and installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
6. Nut
   • 25 Nm
   • Always replace after removing.
   • Coat the stud bolts with hot bolt paste. Refer to the Parts Information.
7. Seal
   • Always replace after removing.
8. Bracket
9. Coolant Return Line
10. Bolt
    • 9 Nm
11. O-Ring
    • Always replace after removing.
    • Coat with coolant
12. Turbocharger Recirculation Valve -N249-
    • Installation position. Refer to Fig 2.
13. Bolt
    • 9 Nm
14. O-Ring
    • Always replace after removing.
15. O-Ring
    • Always replace after removing.
16. Bolt
    • 9 Nm
17. Connection
18. Bolt
    • 9 Nm

Turbocharger Recirculation Valve N249 Installation Position

Fig 2: Identifying Installation Position Of Turbocharger Recirculating Valve

Courtesy of AUDI OF AMERICA, LLC

-- Note the installation location -arrows-.

Part II

Part I. Refer to the information above.

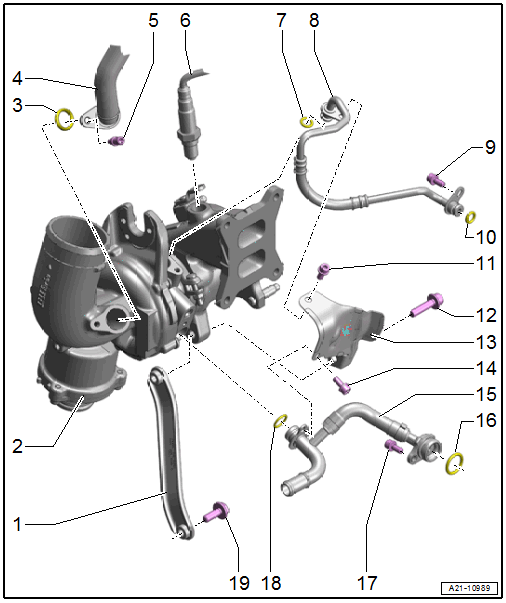

Fig 3: Exploded View Of Turbocharger

Courtesy of AUDI OF AMERICA, LLC

1. Support
2. Turbocharger
   • Removing and installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
3. O-Ring
   • Always replace after removing.
   • Coat with engine oil
4. Line
   • For the crankcase ventilation
   • Do not separate versions with threaded connections -item  ) Part II - List Item: Bolt/Threaded Connection from the turbocharger
5. Bolt/Threaded Connection
   • 9 Nm
   • Depending on the version a bolt or a threaded connection with a connected hose is installed.
   • Do not separate the threaded connection from the turbocharger
6. Oxygen Sensor 1 Before Catalytic Converter -GX10-
   • Removing and Installing. Refer to HEATED OXYGEN SENSOR, REMOVING AND INSTALLING .
7. O-Ring
   • Always replace after removing.
   • Coat with engine oil
8. Oil Supply Line
9. Bolt
   • 9 Nm
10. O-Ring
    • Always replace after removing.
    • Coat with engine oil
11. Bolt
    • 9 Nm
12. Bolt
    • 30 Nm
    • Coat the with hot bolt paste. Refer to the Parts Information.
13. Heat Shield
14. Bolt
    • 9 Nm
15. Coolant Supply Line
16. O-Ring
    • Always replace after removing.
    • Coat with engine oil
17. Bolt
    • 9 Nm
18. O-Ring
    • Always replace after removing.
    • Coat with coolant
19. Bolt
    • 20 Nm + 90°
    • Always replace after removing.
