Overview - Charge Air System, Right Charge Air Cooler

WARNING: This page is about a different variant/trim than selected.

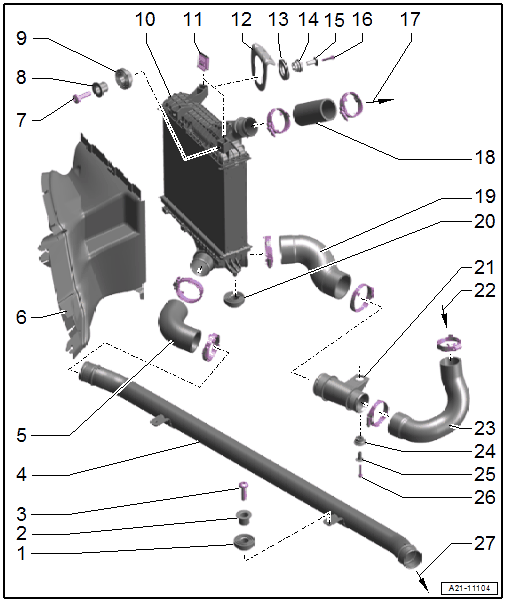

GWWA21-11104Courtesy of AUDI OF AMERICA, LLC
  1. Rubber Bushing
  2. Spacer Sleeve
  3. Bolt
    • 9 Nm
  4. Lower Front Air Duct Pipe
    • Must be free of oil and grease before installing
  5. Air Duct Hose
    • Must be free of oil and grease before installing
  6. Air Duct
  7. Bolt
    • 9 Nm
  8. Spacer Sleeve
  9. Rubber Bushing
  10. Right Charge Air Cooler
  11. Metal Nut
  12. Bracket
  13. Link Washer
  14. Grommet
  15. Spacer Sleeve
  16. Bolt
    • 9 Nm
  17. To the Left Charge Air Cooler
  18. Air Duct Hose
    • To the turbocharger
    • Must be free of oil and grease before installing
  19. Air Duct Hose
    • Must be free of oil and grease before installing
  20. Rubber Bushing
    • For the charge air cooler
  21. Air Duct Pipe
    • Must be free of oil and grease before installing
  22. From the Turbocharger
  23. Air Duct Hose
    • Must be free of oil and grease before installing
  24. Rubber Bushing
  25. Spacer Sleeve
  26. Bolt
    • 9 Nm
  27. To the Left Charge Air Cooler
