Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING: Removing

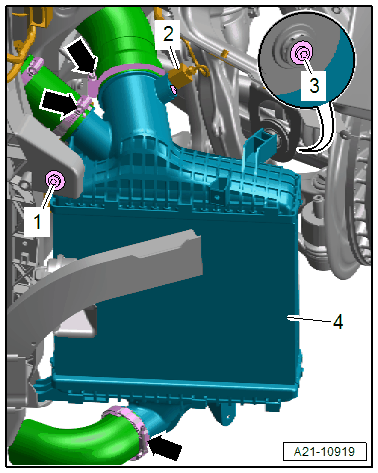

Side Charge Air Cooler:

-- Remove the left front section of the wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left side air intake grille. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

-- Remove the bolt and the Charge Air Pressure Sensor -G31-.

Center Charge Air Cooler:

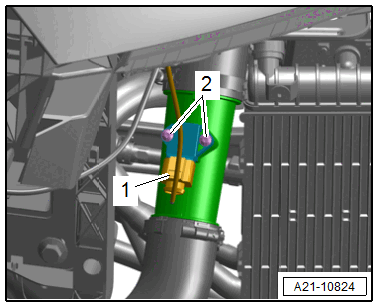

Fig 1: Charge Air Pressure Sensor -G31- Component Location

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolts -2- and the Charge Air Pressure Sensor -G31-. (Shown with the bumper cover removed.)
