Right Charge Air Cooler, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Observe the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Vehicle without parking heater: remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Vehicle with parking heater: remove the right headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

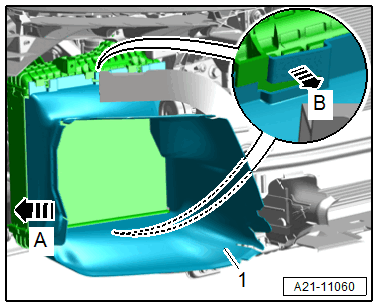

-- Release the upper and lower retainers in direction of -arrow B- and remove the air duct -1- to the right in direction of -arrow A-.

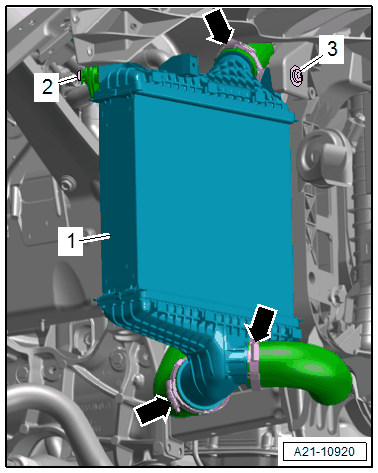

-- Remove the bolts -2 and 3-.
-- Loosen the hose clamps -arrows-, disengage the charge air cooler -1- upward from the lock carrier and remove it from the air duct hoses.
