Left Charge Air Cooler, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Observe the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Remove the left headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

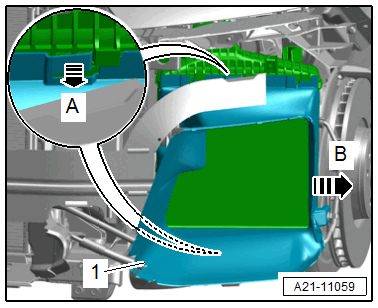

-- Release the upper and lower retainers in direction of -arrow A- and remove the air duct -1- to the left in direction of -arrow B-.
-- Disconnect the connector -2- for the Charge Air Pressure Sensor -G31-.
-- Remove the bolts -1 and 3-.
-- Loosen the hose clamps -arrows-, disengage the charge air cooler -4- upward from the lock carrier and remove it from the air duct hoses.
