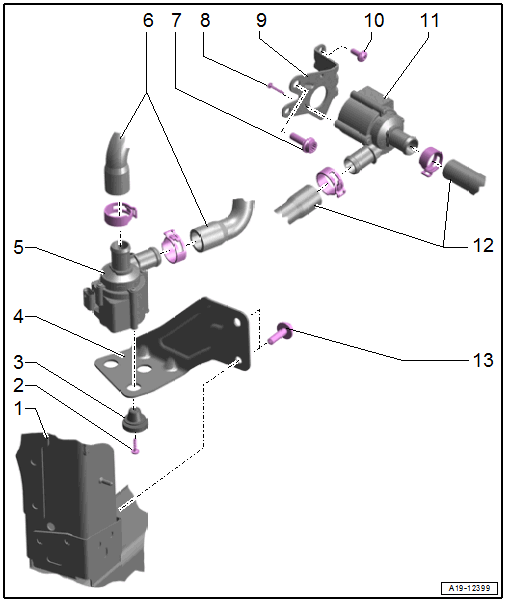

Overview - Electric Coolant Pump, All Vehicles

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

Left Longitudinal Member
Bolt
- 1.5 Nm
Support Base
Bracket
- For the electric coolant pump
Electric Coolant Pump
- Q7 without high-voltage system, without parking heater: Coolant Recirculation Pump -V50-, Removing and Installing. Refer to Coolant Recirculation Pump -V50- / Thermal Management Coolant Pump -V617-, REMOVING AND INSTALLING, AUDI Q7 VEHICLE WITHOUT PARKING HEATER, AUDI Q8 .
- Q7 with high-voltage system: Thermal Management Coolant Pump -V617-, Removing and Installing. Refer to Coolant Recirculation Pump -V50- / Thermal Management Coolant Pump -V617-, REMOVING AND INSTALLING, AUDI Q7 VEHICLES WITH PARKING HEATER .
- Q8 without particulate filter (at the front right longitudinal member), Q8 with particulate filter (sideways at the left of the transmission): Recirculation Pump -V55-, Removing and Installing. Refer to Recirculation Pump -V55-, REMOVING AND INSTALLING, AUDI Q8 .
Coolant Hoses
Bolt
- 20 Nm
Bolt
- 1.5 Nm
Bracket
- For After-Run Coolant Pump -V51-
Bolt
- 9 Nm
After-Run Coolant Pump -V51-
- Removing and installing. Refer to After-Run Coolant Pump -V51-, REMOVING AND INSTALLING .
Coolant Hoses
Bolt
- 20 Nm
