Thermal Management Coolant Pump 4 -V620-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear and left noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

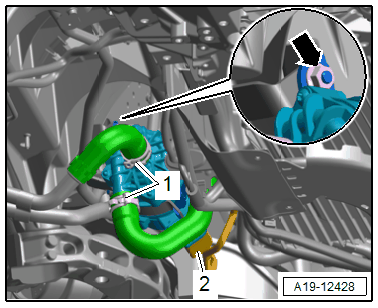

-- Disconnect the connector -2-.
-- Place a cloth underneath to catch any escaping coolant.
-- Loosen the hose clamps -1-, then clamp off the coolant hoses with the : 3094 and then remove them.
-- Free up the coolant hose.
-- Remove the nut -arrow-, open the retaining bracket and remove the Thermal Management Coolant Pump 4 -V620-.
