Coolant Recirculation Pump -V50- / Thermal Management Coolant Pump -V617-, REMOVING AND INSTALLING, AUDI Q7 VEHICLES WITH PARKING HEATER: Removing

Audi Q7, Vehicles with High-Voltage System:

Courtesy of AUDI OF AMERICA, LLC

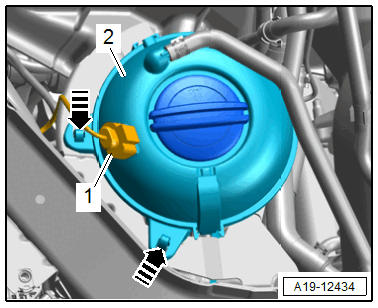

-- Disconnect the connector -1-.

-- Release the retainers in direction of -arrows- and move the coolant expansion tank -2- to the side.

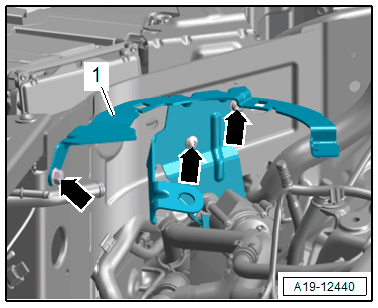

-- Remove the bolts -arrows- for the bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

Audi Q7, vehicles without High-Voltage System:

Courtesy of AUDI OF AMERICA, LLC

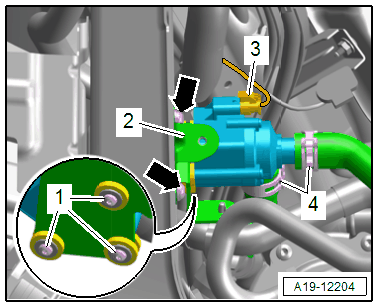

-- Remove the bolts -arrows- for the bracket -2-.

Continuation for All Vehicles:

-- Disconnect the connector -3-.

-- Loosen the hose clamps -4-, then clamp off the coolant hoses with the : 3094  and then remove them.

-- Remove the bolts -1- and remove the Coolant Recirculation Pump -V50- from the bracket.
