After-Run Coolant Pump -V51-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

Vehicle without High-Voltage System:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Place a cloth underneath to catch any escaping coolant.

-- Loosen the hose clamps -1-, then clamp off the coolant hoses with the : 3094 and then remove them.

-- Remove the bolts -arrows- and the After-Run Coolant Pump -V51-.

-- Remove the bolts -2- and remove the bracket.

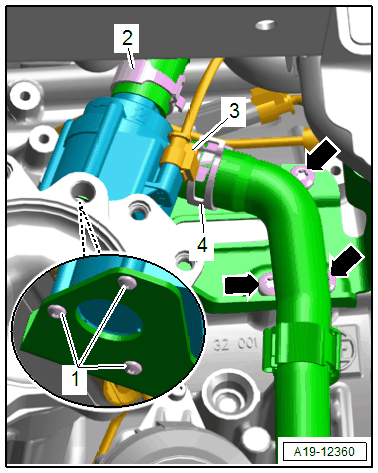

Audi Q7, Vehicles with High-Voltage System:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Place a cloth underneath to catch any escaping coolant.

-- Loosen the hose clamps -2 and 4-, clamp off the coolant hoses with the : 3094 and remove them.

-- Remove the bolts -arrows- and the After-Run Coolant Pump -V51-.

-- Remove the bolts -1- and remove the bracket.
