Coolant Shut-Off Valve -N82-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

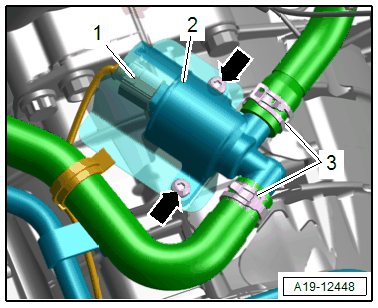

-- Remove the bolts -arrows- and then remove the heat shield -2-.
-- Disconnect the connector -1-.
-- Place a cloth underneath to catch any escaping coolant.
-- Loosen the hose clamps -3- and remove the coolant hoses -2-.
-- Remove the shut-off valve.
