Secondary Air Injection Solenoid Valve -N112-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
Depending on the model, preliminary work may be required. Refer to Secondary Air Injection Solenoid Valve -N112-, REMOVING AND INSTALLING .
-- Remove the bolts and nuts -arrows-, and remove the heat shield -1-.

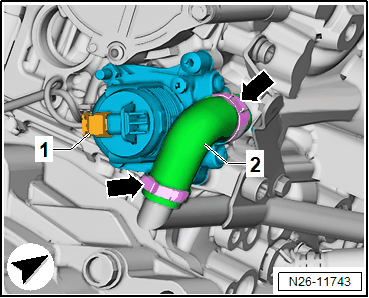

-- Disconnect the connector -1-.
-- Open the hose clamps -arrows- and remove the hose -2-.

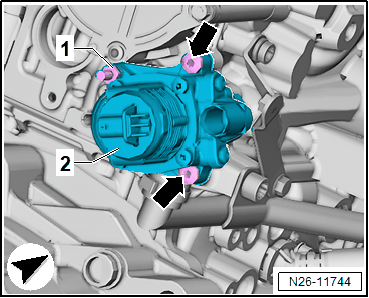

-- Remove the double bolt -1- and bolts -arrows-. Remove the Secondary Air Injection Solenoid Valve -- -2-.
