Secondary Air Injection Pump Motor -V101-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different variant/trim than selected.
Depending on the model, preliminary work may be required. Refer to Secondary Air Injection Pump Motor -V101-, REMOVING AND INSTALLING .
-- Unclip the line -1-.
-- Disconnect the connector -2-.
-- Remove the nut -3-.
-- Press the releases -arrows- to and remove the wire.
-- Remove the resonator -4- from the bracket.

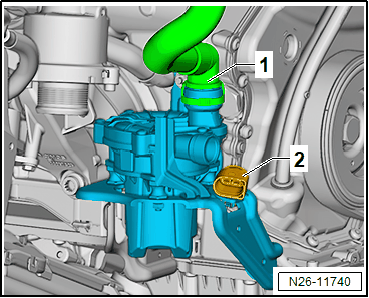

-- Remove the wire -1-.
-- Disconnect the connector -2-.

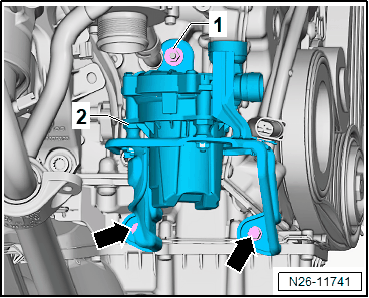

-- Remove the bolts -arrows- and remove the nut -1-.
-- Remove the Secondary Air Injection Pump Motor -- -2- with the bracket.
