Bearing Bracket, Removing And Installing: Installing

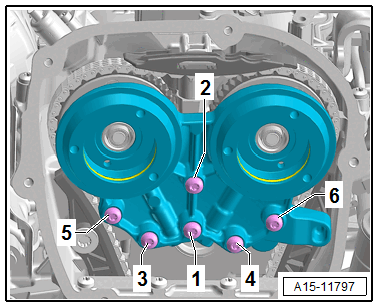

-- Install the bolts -arrows- and tighten them. Tightening specifications -item  ) OVERVIEW - CYLINDER HEAD - List Item: Bolt.

Fig 1: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Coat the holes -arrows- with engine oil.

Courtesy of AUDI OF AMERICA, LLC

-- Check if the adapter sleeve -1- is installed.

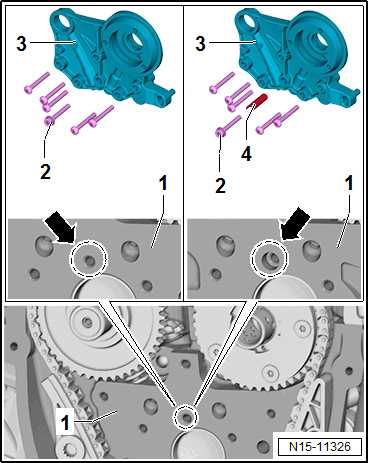

• If a new bearing bracket -3- with adapter sleeve -4- should be installed, it must be checked before installing the bearing bracket in the hole -arrow- in the cylinder head -1-.
  Fig 2: Bearing Bracket - Assembly Instructions

  Courtesy of AUDI OF AMERICA, LLC
• If the hole -arrow- is not designed for using the adapter sleeve -4- the adapter sleeve must be removed from the bearing bracket. For this hole the short bolt -2- should be used. Bolt. Refer to the Parts Information.

• Carefully connect the bearing bracket without tilting - risk of damage.
  Fig 3: Identifying Bolts

  Courtesy of AUDI OF AMERICA, LLC

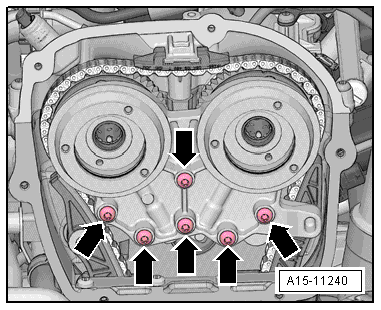

-- Attach the bearing mount and install the bolts -arrows- all the way by hand.

-- Remove the : T40267  .

-- Tighten the bearing bracket bolts. Refer to Figure.

Installation is performed in reverse order of removal, noting the following:

-- Install the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .
