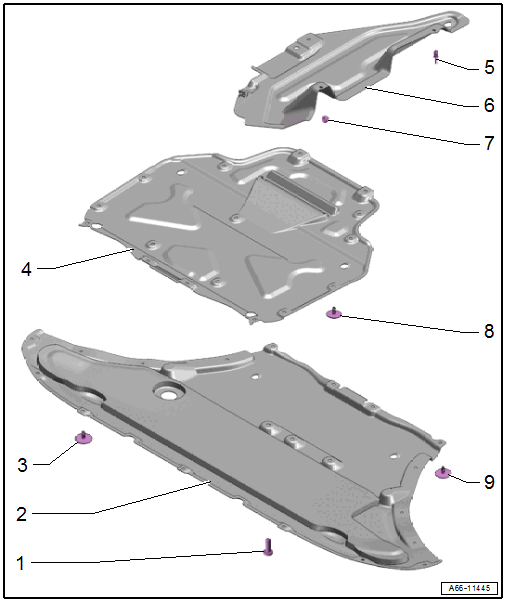

Overview - Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 6 Nm
- Quantity: 3
Front Noise Insulation
- Removing and Installing. Refer to NOISE INSULATION, REMOVING AND INSTALLING, FRONT .
Bolt
- 2.5 Nm
- Quantity: 13
Rear Noise Insulation
- Removing and Installing. Refer to NOISE INSULATION, REMOVING AND INSTALLING, REAR .
Expanding Rivet
Left Noise Insulation
- Removing and Installing. Refer to NOISE INSULATION, REMOVING AND INSTALLING, LEFT .
Nut
- 2.5 Nm
- Quantity: 2
Bolt
- 2.5 Nm
- Quantity: 12
Bolt
- 2.5 Nm
- Quantity: 4
