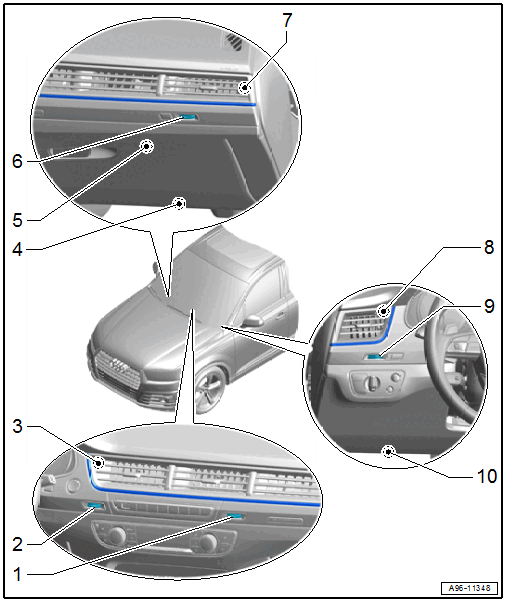

Overview - Instrument Panel Lamps

Courtesy of AUDI OF AMERICA, LLC

Center Instrument Panel Vent Illumination Bulb -L68- Right
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Center Instrument Panel Vent Illumination Bulb -L68- Left
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Instrument Panel Contour Illumination Lamp 2 -L244-
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Right Front Footwell Lamp -K269-
- Removing and installing. Refer to LEFT/RIGHT FRONT FOOTWELL LAMP -K268- / -K269-, REMOVING AND INSTALLING .
Glove Compartment Lamp -W6-
- 12 V, 5 W
- Removing and installing. Refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING .
Right Instrument Panel Vent Illumination Bulb -L69-
- Equipment level
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Instrument Panel Contour Illumination Lamp 3 -L245-
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Instrument Panel Contour Illumination Lamp 1 -L243-
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Left Instrument Panel Vent Illumination Bulb -L67-
- Equipment level
- Cannot be replaced separately if faulty.
- Replacing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Left Front Footwell Lamp -K268-
- Removing and installing. Refer to LEFT/RIGHT FRONT FOOTWELL LAMP -K268- / -K269-, REMOVING AND INSTALLING .
