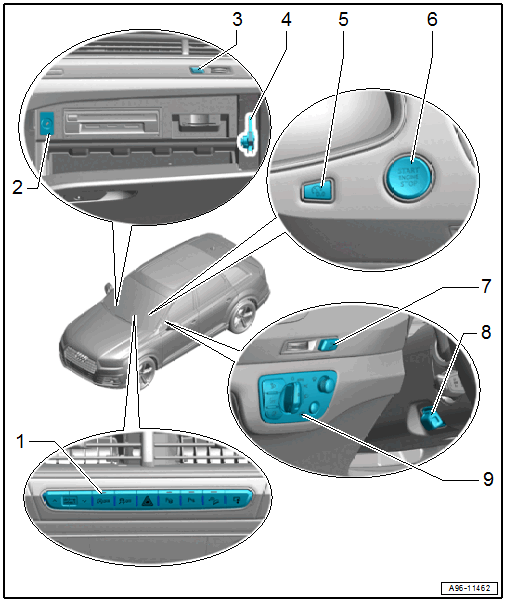

Overview - Instrument Panel Controls

Courtesy of AUDI OF AMERICA, LLC

1. Control Unit 1 for Driving and Convenience Functions -E791-
   • With the following integrated components
     • Emergency Flasher Button -E229-
     • ASR/ESP Button -E256-
     • Parking Aid Button -E266-
     • Front Display Open/Close Button -E462-
     • Parallel Parking Assistance Button -E581-
     • Hill Descent Control Button -E618-
     • Start/Stop Mode Button -E693-
     • Driving Profile Selection Button -E735-
   • The components cannot be replaced separately.
   • If faulty replace a component of the switch module
   • Removing and installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING, Control Unit 1 for Driving and Convenience Functions -E791- .
2. Glove Compartment Lamp Switch -E26-
   • Removing and installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .
3. Front Passenger Airbag Deactivation Key Switch -E224-
   • Equipment level
   • Removing and installing. Refer to FRONT PASSENGER AIRBAG .
4. Instrument Panel Vent Button -E815-
   • Equipment level
   • Removing and installing. Refer to Instrument Panel Vent Button -E815-, REMOVING AND INSTALLING .
5. Instrument Cluster Operation Button -E493-
   • Removing and installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING, Instrument Cluster Operation Button -E493- .
6. Access/Start Authorization Button -E408-
   • Removing and installing. Refer to Access/Start Authorization Button -E408-, REMOVING AND INSTALLING .
7. Driver Side Ionizer Button -E830-
   • Equipment level
   • Removing and installing. Refer to Driver Side Ionizer Button -E830-, REMOVING AND INSTALLING .
8. Steering Column Adjustment Switch -E167-
   • Removing and installing. Refer to Steering Column Adjustment Switch -E167-, REMOVING AND INSTALLING .
9. Light Switch -E1-
   • With Instrument Panel and Switch Illumination Dimmer Switch -E20-
   • With Rear Fog Lamp Button -E314-, Fog Lamp Button -E315-, and Night Vision System Button -E680-
   • Removing and installing. Refer to Light Switch -E1-, REMOVING AND INSTALLING .

Light SwitchE1 Tightening Specification

Fig 1: Light Switch -E1- Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the screws -arrows- to 1.5 Nm.

Control Unit 1 for Driving and Convenience FunctionsE791 Tightening Specification

Fig 2: Control Unit 1 for Driving and Convenience Functions -E791- Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the screws -arrows- to 1.5 Nm.
