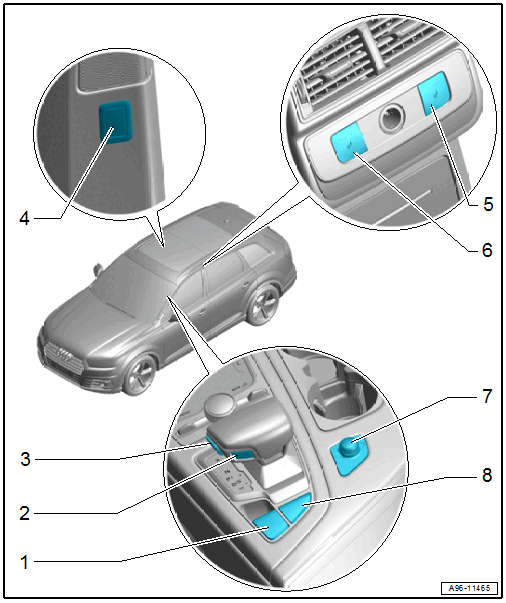

Overview - Controls In Center Console

Courtesy of AUDI OF AMERICA, LLC

Electromechanical Parking Brake Button -E538-
- Removing and installing. Refer to Electromechanical Parking Brake Button -E538- /-AUTO HOLD- Button -E540-, REMOVING AND INSTALLING .
Parking Lock Button -E816-
- Integrated in the selector lever handle
- Cannot be replaced separately
- If faulty replace the selector lever handle. Refer to the appropriate service information .
Selector Lever Release Button -E681-
- Integrated in the selector lever handle
- Cannot be replaced separately
- If faulty replace the selector lever handle. Refer to the appropriate service information .
Front Passenger Side Rear Ionizer Button -E833-
- Country
- Removing and installing. Refer to Air Ionization System Button -E677-, REMOVING AND INSTALLING .
Right Seat Heating Button -E654-
- Equipment level
- Removing and installing. Refer to LEFT/RIGHT SEAT HEATING BUTTON -E653- / -E654-, REMOVING AND INSTALLING .
Left Seat Heating Button -E653-
- Equipment level
- Removing and installing. Refer to LEFT/RIGHT SEAT HEATING BUTTON -E653- / -E654-, REMOVING AND INSTALLING .
Driver Volume Control -E67-
- Removing and installing. Refer to OVERVIEW - SOUND SYSTEM, COMPONENT LOCATION .
-Auto Hold- Button -E540-
- Equipment level
- Removing and installing. Refer to Electromechanical Parking Brake Button -E538- /-AUTO HOLD- Button -E540-, REMOVING AND INSTALLING .
