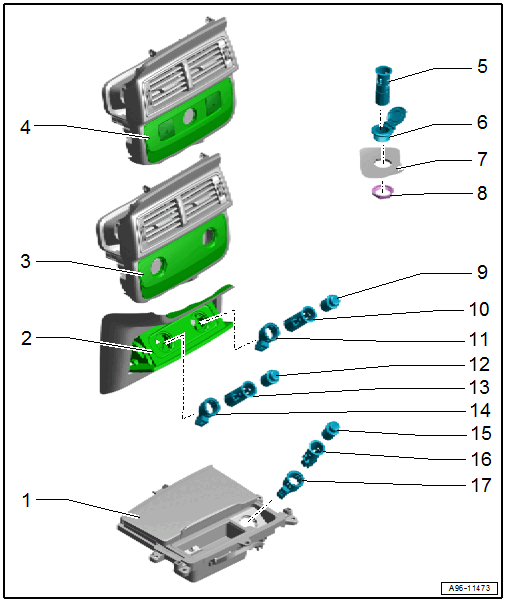

Overview - Cigarette Lighter, 12 V Socket

Courtesy of AUDI OF AMERICA, LLC

Front Ashtray
Folding Compartment Socket
- There are different versions.
- Versions with 12 V Socket 2 -U18- and 12 V Socket 3 -U19-
Socket Trim
- There are different versions.
- Versions with 12 V Socket 2 -U18- and 12 V Socket 3 -U19-
Rear Seat Heating Socket/Button Trim
- There are different versions.
- Versions with 12 V Socket 2 -U18-
12 V Socket 4 -U20-
- Removing and installing. Refer to 12 V Socket 4 -U20-, REMOVING AND INSTALLING .
- Replacing. Refer to 12 V Socket 4 -U20-, REPLACING .
Mount with Cover
- For the 12 V Socket 4 -U20-
Luggage Compartment Side Trim Panel
Nut
- 2 Nm
Cigarette Lighter
12 V Socket 3 -U19-
- Removing and installing. Refer to 12 V Socket 3 -U19-, REMOVING AND INSTALLING .
Socket Illumination Bulb -L42-
- For 12 V Socket 3 -U19-
- Removing and installing. Refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
Blind Cover
12 V Socket 2 -U18-
- Removing and installing. Refer to 12 V Socket 2 -U18-, REMOVING AND INSTALLING .
Socket Illumination Bulb -L42-
- For 12 V Socket 2 -U18-
- Removing and installing. Refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
Cigarette Lighter/Blind Cover
Cigarette Lighter/12 V Socket
- There are different versions.
- Versions with Cigarette Lighter -U1- or 12 V Socket -U5-
- Removing and installing. Refer to Cigarette Lighter -U1-, REMOVING AND INSTALLING .
Cigarette Lighter Illumination Bulb
- There are different versions.
  Versions with Cigarette Lighter Illumination Bulb -L28- for Cigarette Lighter -U1-
- Removing and installing. Refer to Cigarette Lighter Illumination Bulb -L28-, REMOVING AND INSTALLING .
  Versions with Socket Illumination Bulb -L42- for 12 V Socket -U5-
- Removing and installing. Refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
