Part III

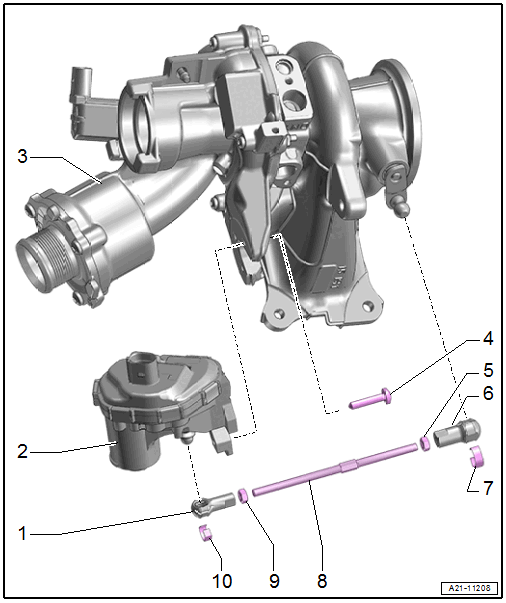

Fig 1: Exploded View Of Turbocharger, Part III
GWWA21-11208Courtesy of AUDI OF AMERICA, LLC
  1. Ball Socket
  2. Charge Air Pressure Actuator -V465-
    • Not available separately, included in the turbocharger delivery package
  3. Turbocharger
  4. Bolt
    • 9 Nm
  5. Nut
    • 8 Nm
  6. Ball Socket
  7. Locking Spring
    • Always replace after removing.
  8. Control Rod
  9. Nut
    • 8 Nm
  10. Locking Spring
    • Always replace after removing.
