Component Location Overview - Airbag System

Courtesy of AUDI OF AMERICA, LLC

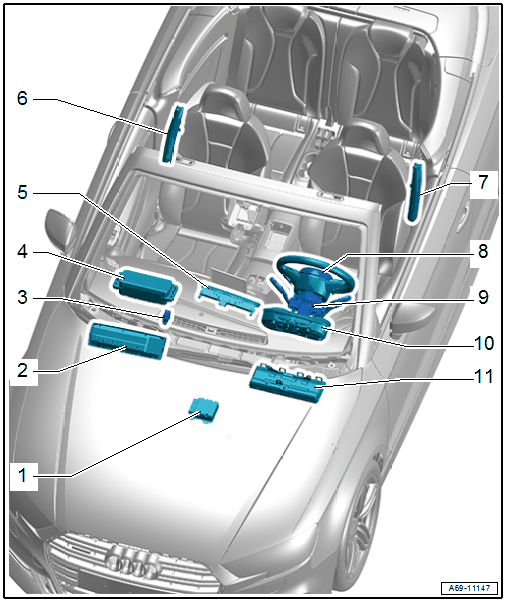

1. Airbag Control Module -J234-
   • Overview. Refer to OVERVIEW - AIRBAG CONTROL MODULE .
2. Front Passenger Knee Airbag Igniter -N296-
   • Market-Specific Version
   • Overview. Refer to OVERVIEW - FRONT PASSENGER KNEE AIRBAG .
3. Front Passenger Airbag Deactivation Key Switch -E224-
   • Not for North American Market.
4. Front Passenger Airbag
   • With Front Passenger Airbag Igniter 1 -N131-
   • Market-specific with Front Passenger Airbag Igniter 2 -N132-
   • Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
5. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • Cannot be replaced separately
   • Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL CONTROLS .
6. Thorax Airbag on Front Passenger Side
   • With Front Passenger Thorax Airbag Igniter -N200-
   • Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
7. Thorax Airbag on Driver Side
   • With Driver Thorax Airbag Igniter -N199-
   • Overview. Refer to OVERVIEW - FRONT THORAX AIRBAG .
8. Driver Side Airbag
   • With Driver Airbag Igniter -N95-
   • Overview. Refer to OVERVIEW - DRIVER SIDE AIRBAG .
9. Steering Column Electronics Control Module -J527-
   • With Spiral Spring -F350-
   • Overview. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
10. Airbag Indicator Lamp -K75-
    • Integrated in the instrument cluster.
    • Cannot be replaced separately
    • Instrument cluster, removing and installing. Refer to OVERVIEW - INSTRUMENT CLUSTER .
11. Driver Knee Airbag Igniter -N295-
    • Overview. Refer to OVERVIEW - KNEE AIRBAG .
