Driver Side Rear Thorax Airbag Crash Sensor -G256-, REMOVING AND INSTALLING: Removing
Risk of injury due to involuntary deployment.
- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
-- Move the front seats into the most forward position and position the backrest all the way toward the front.
-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the rear bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .
-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
-- Push the rear carpet forward near the center tunnel and remove the insulation.

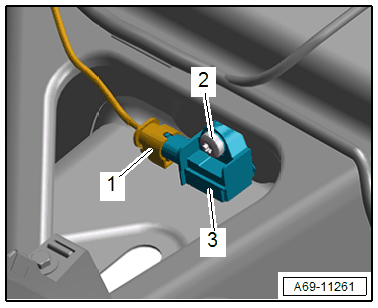

-- Remove the bolt -2- and the thorax airbag crash sensor -3- from the body.
Risk of injury due to involuntary deployment.
- Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Disconnect the connector -1-.
-- To do this pull out the connector lock -2-, push down -arrow-, and disconnect the connector -1- on the crash sensor.
