Component Location Overview - Airbag Crash Sensors

Courtesy of AUDI OF AMERICA, LLC

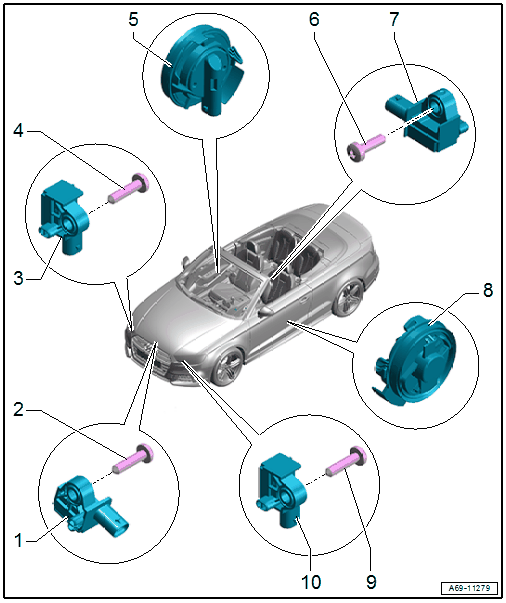

1. Driver Front Airbag Crash Sensor -G283-
   • Component location: in the vehicle center on the lock carrier
   • Removing and Installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
2. Bolt
   • 9 Nm
3. Passenger Side Front Airbag Crash Sensor -G284-
   • Component location: right side of lock carrier
   • Market-Specific Version
   • Removing and Installing. Refer to FRONT AIRBAG CRASH SENSOR -G283- / -G284-, REMOVING AND INSTALLING, MARKET-SPECIFIC .
4. Bolt
   • 9 Nm
5. Front Passenger Thorax Airbag Crash Sensor -G180-
   • Component location: inside the door
   • For the safety precautions for working with front thorax airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
   • Removing and Installing. Refer to Driver Thorax Airbag Crash Sensor -G179- / Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
6. Bolt
   • 9 Nm
7. Driver Side Rear Thorax Airbag Crash Sensor -G256-
   • Component location: in the vehicle center at the rear on the center tunnel
   • Removing and Installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256-, REMOVING AND INSTALLING .
8. Driver Thorax Airbag Crash Sensor -G179-
   • Component location: inside the door
   • For the safety precautions for working with front thorax airbag crash sensors (pressure sensors). Refer to FRONT THORAX AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
   • Removing and Installing. Refer to Driver Thorax Airbag Crash Sensor -G179- / Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
9. Bolt
   • 9 Nm
10. Driver Front Airbag Crash Sensor -G283-
    • Component location: left side of lock carrier
    • Market-Specific Version
    • Removing and Installing. Refer to FRONT AIRBAG CRASH SENSOR -G283- / -G284-, REMOVING AND INSTALLING, MARKET-SPECIFIC .
