Rear Center Console Vent Air Guide Channel: Removing
-- Remove the center console mounting bracket. Refer to CENTER CONSOLE BRACKET, REMOVING AND INSTALLING .
-- Remove the frame for the gearshift mechanism housing. Refer to SELECTOR MECHANISM .

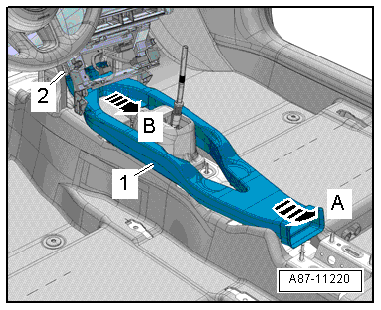

-- Move the air guide channel -1- at the rear upward in direction of -arrow A-, pull it out of the locking mechanism on the air distribution housing -2- in direction of -arrow B- and remove it.
