Automatic Climate Control: Installing

Install in reverse order of removal. Note the following:

NOTE:

Check the function of the doors and linkage before installing.

Check if the lever and shafts are seated correctly in the mounts.

-- Check if the gears correlate correctly with one another.

The square tooth -2- must engage into the gap -3- on the toothed gear -1-.

Courtesy of AUDI OF AMERICA, LLC

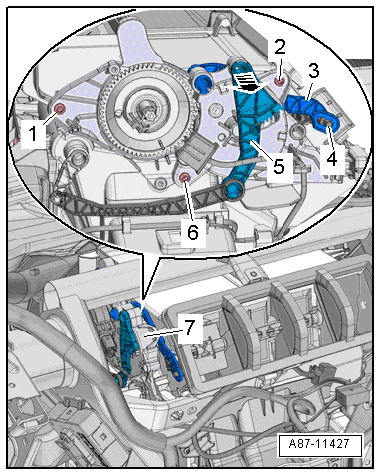

-- When mounting the adjuster, the operating lever -3- must engage into the vent door lever -4- in the middle.
