Plenum Chamber Water Drain, Vehicle Interior Forced Air Extraction

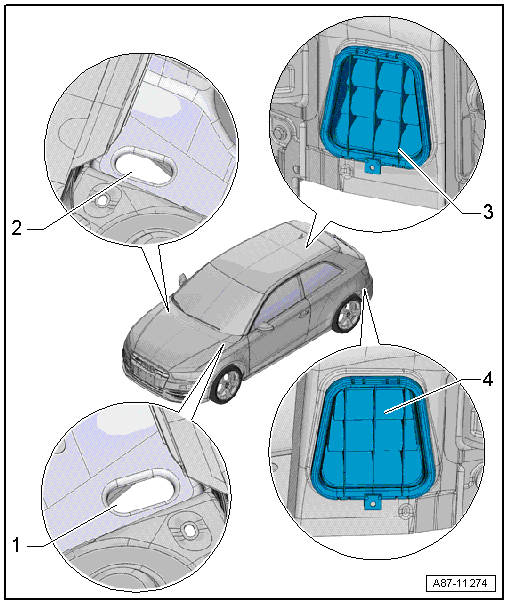

Fig 1: A/C Components Location (Components Outside Of Passenger Compartment - 3 Of 4)

Courtesy of AUDI OF AMERICA, LLC

1. Left Plenum Chamber Water Drain
   • Checking and Cleaning. Refer to PLENUM CHAMBER WATER DRAIN, CHECKING .
2. Right Plenum Chamber Water Drain
   • Checking and Cleaning. Refer to PLENUM CHAMBER WATER DRAIN, CHECKING .
3. Right Vehicle Interior Forced Air Extraction
   • Checking using the :Vehicle Diagnostic Tester  . Refer to PASSENGER COMPARTMENT FORCED AIR EXTRACTION, CHECKING .
   • Removing and Installing. Refer to PASSENGER COMPARTMENT FORCED AIR EXTRACTION, REMOVING AND INSTALLING .
4. Left Vehicle Interior Forced Air Extraction
   • Checking using the :Vehicle Diagnostic Tester  . Refer to PASSENGER COMPARTMENT FORCED AIR EXTRACTION, CHECKING .
   • Removing and Installing. Refer to PASSENGER COMPARTMENT FORCED AIR EXTRACTION, REMOVING AND INSTALLING .
