Refrigerant Lines, Disconnecting And Connecting At Condenser, Q2, Q2 China: Removing
-- Discharge the refrigerant circuit. Refer to Refrigerant Circuit (Refrigerant R134a Servicing, Refrigerant Circuit, Working with A/C Service Station) or Working with A/C Service Station (1 Of 2) / Working with A/C Service Station (2 Of 2) .
-- If possible, remove the right air intake grille. Refer to OVERVIEW - BUMPER COVER .
-- If it is not possible to remove the air intake grille, then remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

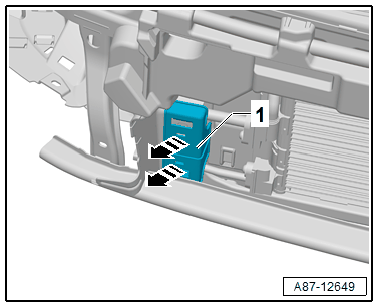

-- Release the cover -1- and remove in the direction of -arrow-.
Danger due to refrigerant coming out under pressure.
Danger of frost bite to skin and other parts of the body.
- Evacuate the refrigerant and immediately open the refrigerant circuit afterward.
- If more than 10 minutes have elapsed since evacuating the refrigerant and the refrigerant circuit was not opened, evacuate the refrigerant again. Pressure in the refrigerant circuit is caused by evaporation.
-- Remove the bolts -2 and 3- and remove the refrigerant lines -1 and 4-.
-- Seal the open lines and connections with clean plugs from the Engine Bung Set :VAS6122 .
