Overview - Window Regulator

WARNING: This page is about a different variant/trim than selected.

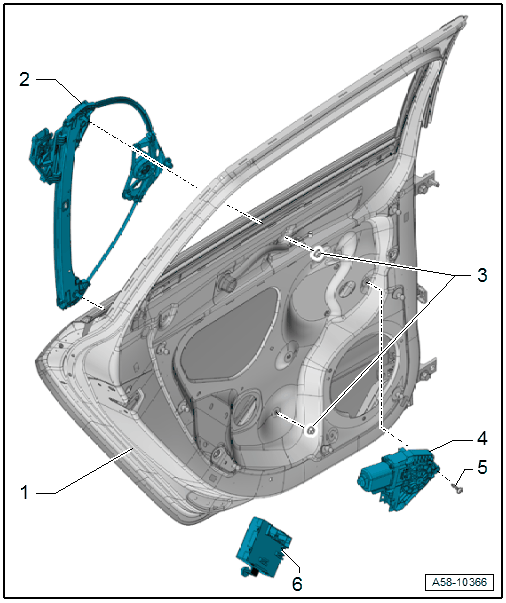

Fig 1: Exploded View Of Window Regulator

Courtesy of AUDI OF AMERICA, LLC

Door
Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING
Nut
- 6 Nm
Rear Power Window Motor
Low Comfort System
- Driver Side Rear Window Regulator Motor Control Module -J1016-, Passenger Side Rear Window Regulator Motor Control Module -J1017-
- Removing and Installing. Refer to Driver Side Rear Window Regulator Motor Control Module -J1016- AND Front Passenger Side Rear Window Regulator Motor Control Module -J1017-, REMOVING AND INSTALLING .
  High Comfort System
- Driver Side Rear Window Regulator Motor -V471-, Passenger Side Rear Window Regulator Motor -V472-
- Removing and Installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Bolt
- 3.5 Nm
- Quantity: 3
Rear Door Control Module
- Equipped on some models
- Driver Side Rear Door Control Module -J926-, Passenger Side Rear Door Control Module -J927-
- Component location overview. Refer to COMPONENT LOCATION OVERVIEW - CENTRAL LOCKING .
