Overview - Window Guides And Window Shaft Strips, SPORTBACK

WARNING: This page is about a different variant/trim than selected.

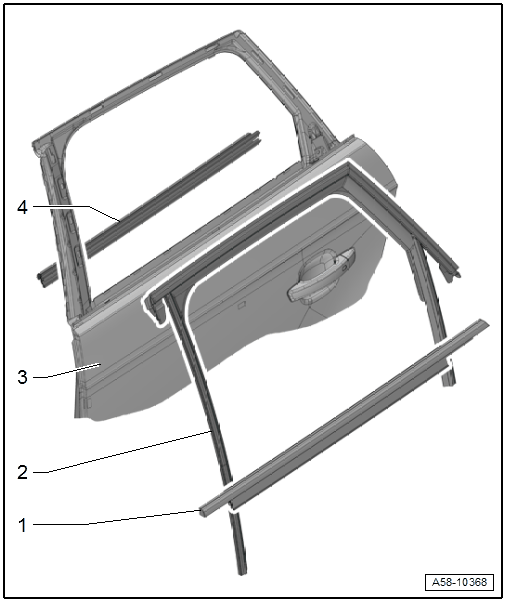

Fig 1: Exploded View Of Window Guides And Window Shaft Strips (Sportback)

Courtesy of AUDI OF AMERICA, LLC

Outer Window Shaft Strip
- Removing and installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING
Window Guide
- Removing and installing. Refer to WINDOW GUIDE, REMOVING AND INSTALLING, SPORTBACK
Door
Inner Window Shaft Strip
- Removing and installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING
