Outer Window Shaft Strip, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:
NOTE:
The lower edge of the window shaft strip can be coated with tire mounting paste for installation.

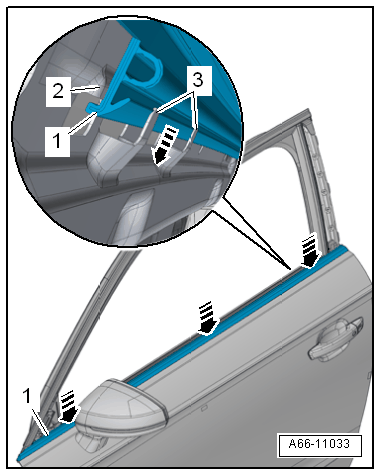

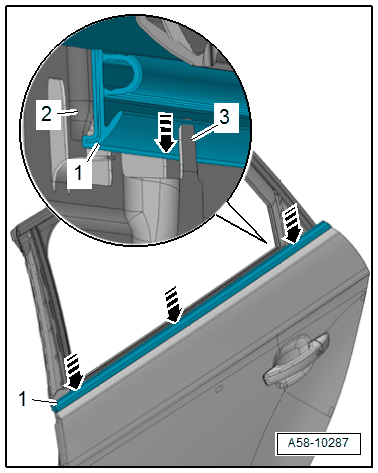

-- Place the window shaft strip -1- on the B-pillar trim on the door fold and press evenly -arrows- while doing this the retaining strip must glide on the guides -3- and audibly engage in the retaining plate -2-.
- The retaining strip must fit under the retaining plate.
