Housing, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

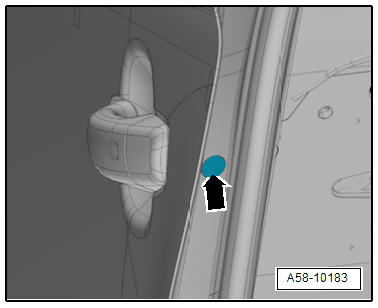

-- Remove the cover plus -arrow-.

GWWA58-10183Courtesy of AUDI OF AMERICA, LLC

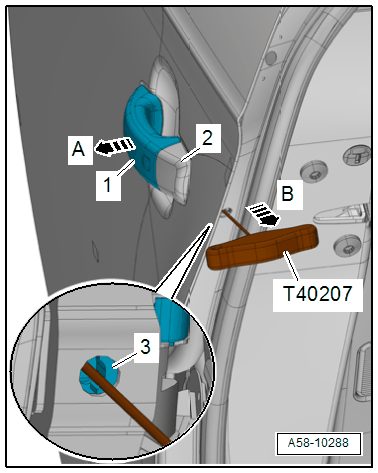

-- Remove the bracket -3- outward in the direction of -arrow B- using the : T40207  .

GWWA58-10288Courtesy of AUDI OF AMERICA, LLC

-- Pull the door handle -1- slightly outward in the direction of -arrow A- and remove the housing -2- from the mounting bracket.
