Overview - Head Curtain Airbag, Sedan

Fig 1: Head Curtain Airbag Exploded View

Courtesy of AUDI OF AMERICA, LLC

1. Black Line
   • Serves as anti-rotation protector
   • Must be visible after assembly.
2. Clip
   • Removing and Installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING, SEDAN - Disengage the clips -1, 2, and 3- head curtain airbag retaining tab clips from the body. .
   • Quantity: 6
3. Expanding Clip
   • Quantity: 3
4. Head Curtain Airbag Guide
   • Removing and Installing. Refer to HEAD CURTAIN AIRBAG GUIDE, REMOVING AND INSTALLING .
5. Head Curtain Airbag
   • Driver side: with Driver Head Curtain Airbag Igniter -N251-
   • Front passenger side: with Front Passenger Head Curtain Airbag Igniter -N252-
     WARNING:

     Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .

   • Removing and Installing. Refer to HEAD CURTAIN AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
6. Connector
   • Driver side: for Driver Head Curtain Airbag Igniter -N251-
   • Front passenger side: for the Front Passenger Head Curtain Airbag Igniter -N252-
   • Disconnecting and connecting. Refer to Figure.
7. Bolt
   • 5 Nm
   • Replace after removing.
8. Bolt
   • 5 Nm
   • Replace after removing.
9. Clip
   • Quantity: 2

A-Pillar Deformation Element, Market-Specific - Tightening Specification

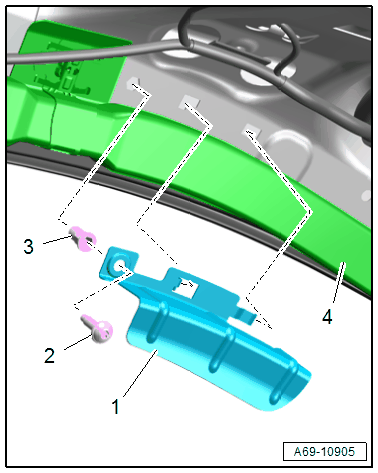

Fig 2: A-Pillar Deformation Element, Market-Specific - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

• Installed location: on the left and right sides above the A-pillar.

1. Deformation Element
2. Bolt - 4 Nm
3. Pop Rivet Nut
4. Head Curtain Airbag
