Component Location Overview - Adaptive Cruise Control (Acc), RS3 From My 2017

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

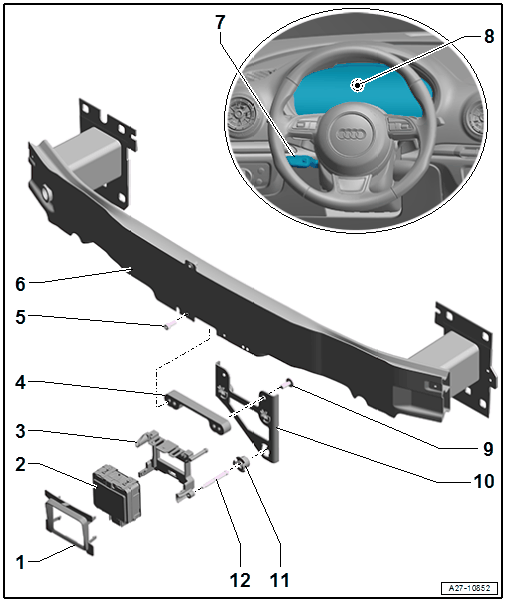

Cover
Control Module for Adaptive Cruise Control -J428-
- Removing and Installing. Refer to Distance Regulation Control Module -J428-, REMOVING AND INSTALLING .
Adapter Frame with Stud Bolt
- For Control Module for Adaptive Cruise Control -J428-
- Replacing. Refer to Distance Regulation Control Module -J428- ADAPTER FRAME, REPLACING, VERSION 2 AND RS3 FROM MY 2017 .
Bracket
Bolt
- 5.5 Nm
- Quantity: 2
Impact Member
Operating Lever for Adaptive Cruise Control
- Shared component with the steering column switch module. Cannot be replaced separately
- Removing and Installing. Refer to STEERING COLUMN COMBINATION SWITCH, REMOVING AND INSTALLING .
Instrument Cluster
- With Instrument Cluster Control Module -J285-
Bolt
- Tightening specification. Refer to OVERVIEW - IMPACT MEMBER .
- Quantity: 2
Retaining Plate
- There are different versions. Refer to the Parts Information.
- Removing and Installing. Refer to BASEPLATE FOR Distance Regulation Control Module -J428-, REMOVING AND INSTALLING, VERSION 2 AND RS3 FROM MY 2017 .
Quick Release
- Always replace
- Quantity: 3
Stud Bolt
- Note the adjustment dimension. Refer to Installing - Measure the dimension -a- at the upper stud bolt using the : VAS6335 and correct if necessary. .
- Quantity: 2
