Overview - Lower Rear Lid Trim Panel, Sedan

Fig 1: Exploded View Of Lower Rear Lid Trim Panel, Sedan

Courtesy of AUDI OF AMERICA, LLC

1. Bracket
   • For the warning triangle
   • Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING, SEDAN .
   • Insert in the rear lid and press on it until it engages audibly
2. Emergency Triangle
3. Cover
   • For the emergency release
   • Country-specific: emergency release Fig 2
   • Clipped in the rear lid trim panel
4. Rear Lid Trim Panel
   • Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING, SEDAN .
   • Press on until it engages audibly
5. Rear Lid Latch Trim Panel
   • Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING, SEDAN .
   • Press on until it engages audibly
6. Stop Strip
   • Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING, SEDAN .
   • Clip to the bracket
   • Quantity: 2
7. Bracket
   • For the stop strip
   • Quantity: 2
   • Clip into rear lid
8. Expanding Nut
   • Clip into rear lid
9. Gap Cover
   • Quantity: 2
   • Removing and Installing. Refer to REAR LID TRIM, REMOVING AND INSTALLING, SEDAN .
10. Expanding Clip
    • Quantity: 2
    • Install the expanding clip and push the clamping pin in flush
11. Cover
    • For the wiring guide
    • Clipped in the rear lid hinge
    • Quantity: 2
12. Clip
    • Insert in the trim panel
    • Replace damaged or deformed clips
    • Remove any remaining rear lid clips using Omega Clip Tool: T40280  and use them to install the trim.
    • Quantity: 10
13. Bolt
    • 2 Nm

Market-Specific Emergency Release

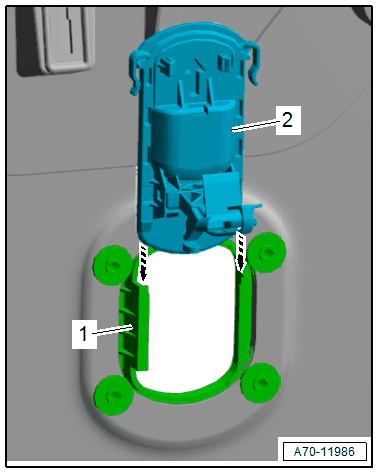

Fig 2: Market-Specific Emergency Release

Courtesy of AUDI OF AMERICA, LLC

• Installed location, in the rear lid trim

1. Emergency release mount
2. Emergency Release Actuator
