Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING : Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the right D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

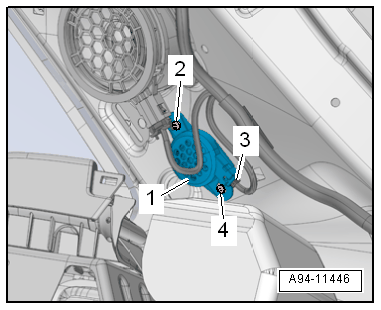

-- Remove the bolts -2 and 4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear parking aid warning buzzer -1- with the expanding clip.

-- Disconnect the connector -3-.
